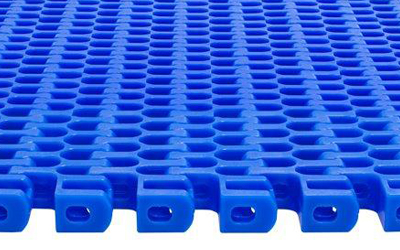

| Pitch | 25.4mm | |
|---|---|---|
| Link Thickness | 13mm |  |
| Open Area | 47.5% | |
| Drive Method | Hinge Driven | |
| Surface Area | Flush Grid | |
| Hold Down Tabs | Available | |
| Back Pressure Rollers | Available | |
| Travel | Bi Directional | |
| Link Layout | Bricklayed |
| Belt Material | Temperature Range C | Belt Weight M2 | Minimum Inside Radius |
|---|---|---|---|
| Acetal with Acetal Rods | -40°c to 93.6°c | 7.4kg | 2.2 x belt width |
| Acetal with Polypropylene Rods | 5°c to 93.6°c | 7.4kg | 2.2 x belt width |
| Rods | Diameter | Rod Retention |
|---|---|---|
| Polypropylene | 4.9mm ᴓ | Offset Hole |
| Acetal | 4.9mm ᴓ | Offset Hole |
Sprockets
| Material | Number of teeth | Bore with keyway | Hub width | Hub dia |
|---|---|---|---|---|
| Glass Filled Nylon | 16 | 25mm or 30mm | 21.8mm | 115mm |
 |
 |
 |
